RF24LogAbstractStream Class Reference

A protected collection of methods that output formatted data to a stream. More...

#include <AbstractStream.h>

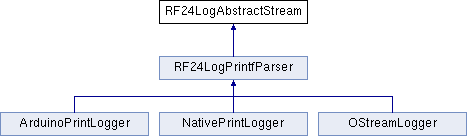

Inheritance diagram for RF24LogAbstractStream:

Protected Member Functions
virtual void	appendTimestamp ()=0
	output a timestamp
void	appendLogLevel (uint8_t logLevel)
	output a description of the log level More...
void	descTimeLevel (uint8_t logLevel)
	Automate the output of the header' timestamp and level description. More...
void	appendFormat (FormatSpecifier *fmt_parser, va_list *args)
	output a data according to the format specifier More...
virtual void	appendChar (char data, uint16_t depth=1)=0
	append a character a number of times More...
virtual void	appendInt (long data)=0
	append a signed (+/-) number More...
virtual void	appendUInt (unsigned long data, uint8_t base=10)=0
	append an ‘unsigned’ (only +) number More...
virtual void	appendDouble (double data, uint8_t precision=2)=0
	append a floating point number More...
virtual void	appendStr (const char *data)=0
	append a c-string More...

Detailed Description

A protected collection of methods that output formatted data to a stream.

Definition at line 30 of file AbstractStream.h.

Member Function Documentation

appendChar()

virtual void RF24LogAbstractStream::appendChar ( char  data, uint16_t  depth = 1  )

protectedpure virtual

append a character a number of times

Parameters

data	The char to use
depth	The number of times that the data is sequentially output.

Implemented in OStreamLogger, NativePrintLogger, and ArduinoPrintLogger.

appendDouble()

virtual void RF24LogAbstractStream::appendDouble ( double  data, uint8_t  precision = 2  )

protectedpure virtual

append a floating point number

Parameters

data	The numeric data
precision	The number of decimals places to output

Implemented in OStreamLogger, NativePrintLogger, and ArduinoPrintLogger.

appendFormat()

void RF24LogAbstractStream::appendFormat ( FormatSpecifier *  fmt_parser, va_list *  args  )

protected

output a data according to the format specifier

Parameters

fmt_parser	The object of prefixed specifier options/flags
args	The sequence of args

Definition at line 67 of file AbstractStream.cpp.

appendInt()

virtual void RF24LogAbstractStream::appendInt ( long  data )

protectedpure virtual

append a signed (+/-) number

Parameters

data	The numeric data

Implemented in OStreamLogger, NativePrintLogger, and ArduinoPrintLogger.

appendLogLevel()

void RF24LogAbstractStream::appendLogLevel ( uint8_t  logLevel )

protected

output a description of the log level

Parameters

logLevel

The level to describe.

Definition at line 33 of file AbstractStream.cpp.

appendStr()

virtual void RF24LogAbstractStream::appendStr ( const char *  data )

protectedpure virtual

append a c-string

Parameters

data	The c-string data

Implemented in OStreamLogger, NativePrintLogger, and ArduinoPrintLogger.

appendUInt()

virtual void RF24LogAbstractStream::appendUInt ( unsigned long  data, uint8_t  base = 10  )

protectedpure virtual

append an ‘unsigned’ (only +) number

Parameters

data	The numeric data
base	The base counting scheme. Defaults to 10 for decimal counting system

Implemented in OStreamLogger, NativePrintLogger, and ArduinoPrintLogger.

descTimeLevel()

void RF24LogAbstractStream::descTimeLevel ( uint8_t  logLevel )

protected

Automate the output of the header' timestamp and level description.

Parameters

logLevel

The Log level to describe.

Definition at line 22 of file AbstractStream.cpp.

---

The documentation for this class was generated from the following files:

• src/RF24LogParts/AbstractStream.h
• src/RF24LogParts/AbstractStream.cpp
